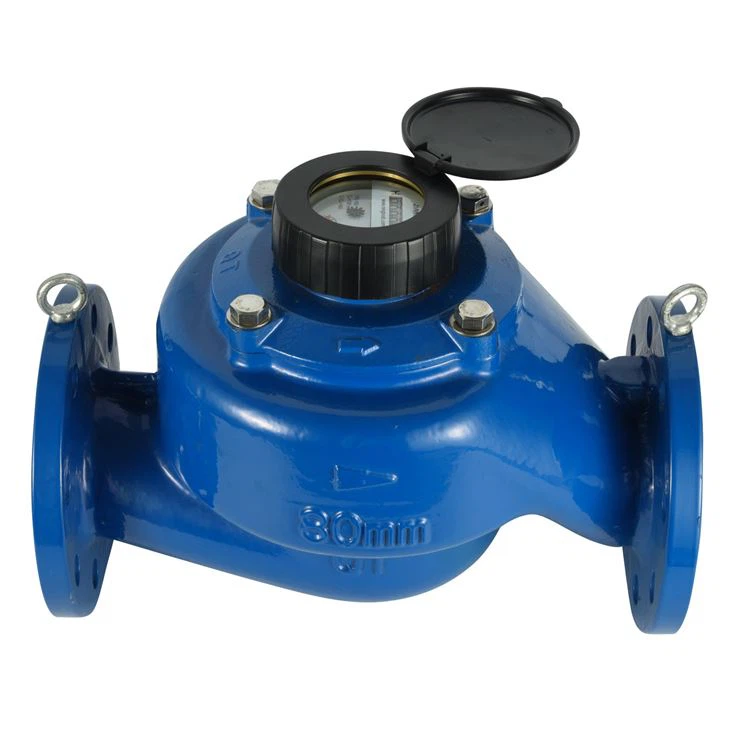

Ntsug Woltman Qhuav Hom Dej Ntsuas Dej Ntsuas Dej C/R160/R200
WS2yog hom qhuav ntsug hom woltman, tsim los ntsuas qhov ntim tag nrho ntawm cov dej tsis nkag mus hla cov kav dej loj hauv qhov ntau thiab tsawg ntawm 50mm txog 200mm, xws li cov kais dej, dej zoo, dej dej, nrog rau cov dej phwj tuaj, tshwj tsis yog cov dej xeb.
Nta
* Nws yog lub ntsuas dej woltman ntsug.
* Sib nqus tsav, qis kis tau tus mob kuj.
* Cov hlau nplaum thaiv, rau kev tiv thaiv sab nraud sab nraud.
* Cov qauv txav tau yooj yim, tu yooj yim.
* Kev tshem tawm thiab kaw cov npe qhuav qhuav thiab cov lej loj kom ntseeg tau meej meej nyeem ntawv, lub neej ua haujlwm ntev.
* Lub ntsuas ntsuas tuaj yeem tshem tawm ntawm lub cev rau tshuaj xyuas, tswj thiab hloov pauv, thiab lub cev xav tau' tsis raug tshem tawm ntawm cov raj xa dej.
* Cov khoom sib pauv tau.
* Tsawg siab poob.
* Yuav tuaj yeem nruab nrog reed hloov (sau npe tuaj yeem' tsis tig).
Kev Ua Raws Cai
Cov ntaub ntawv txuj ci ua raws li ISO 4064 Class C, R160 thiab R200 tus qauv.
Cov Haujlwm Ua Haujlwm
Dej kub: ≤50ºC rau ntsuas dej txias
Dej siab: ≤1MPa lossis 1.6MPa lossis 4.0 MPa yeem (10bar lossis 16bar r 40 bar yeem)
Kev teeb tsa yuav tsum tau ua
*Cov kav dej yuav tsum tau yaug ua ntej kev teeb tsa.
*Lub ntsuas yuav tsum muaj dej tas li thaum lub sijhawm ua haujlwm.
Qhov Siab Tshaj Plaws Tso Cai
Hauv cheeb tsam qis dua los ntawm Qmin (Q1) suav nrog tab sis tsis suav nrog Qt (Q2) yog ± 5%.
Hauv cheeb tsam sab saud los ntawm Qt (Q2) suav nrog thiab suav nrog Qmax (Q4) yog ± 2%(ntsuas dej txias).
MAIN TECHNICAL DATA Raws li ISO4064: 2003 (Qub Txuj Ci)
| Meter Loj | Ntsuas | Max ntws | Nominal Flow | Kev Hloov Mus Los | Min ntws | Min Nyeem Ntawv | Max Nyeem Ntawv | |
| hli | chav kawm | m³/h | m³ | |||||
| 50 | C | 30 | 15 | 22.5 | 90 | 0.0005 | 999999 | |
| 80 | C | 80 | 40 | 60 | 240 | 0.0005 | 999999 | |
| 100 | C | 120 | 60 | 90 | 360 | 0.0005 | 999999 | |
| 150 | C | 300 | 150 | 225 | 900 | 0.005 | 9999999 | |
| 200 | C | 500 | 250 | 375 | 1500 | 0.005 | 9999999 | |
MAIN TECHNICAL DATA Raws li ISO4064: 2005(Txuj Ci Tshiab)
| Meter Loj | Ntsuas | Q4 | Q3 | Q2 | Q1 | Min Nyeem Ntawv | Max Nyeem Ntawv |
| hli | R | m³/h | m³ | ||||
| 50 | 160 | 50 | 40 | 400 | 250 | 0.0005 | 999999 |
| 200 | 320 | 200 | |||||
| 80 | 160 | 78.7 | 63 | 630 | 393.75 | 0.0005 | 999999 |
| 200 | 504 | 315 | |||||
| 100 | 160 | 125 | 100 | 1000 | 625 | 0.0005 | 999999 |
| 200 | 800 | 500 | |||||
| 150 | 160 | 312.5 | 250 | 2500 | 1562.5 | 0.005 | 9999999 |
| 200 | 2000 | 1250 | |||||
| 200 | 160 | 500 | 400 | 4000 | 2500 | 0.005 | 9999999 |
| 200 | 3200 | 2000 |
Qhov ntev thiab qhov hnyav
| Qhov loj me me | Ntev L | Dav W | Qhov siab H. | Txuas xov | ||
| hli | hli | D | Bolt lub voj voog Dia D1 | Conncting ntsia liaj qhov rooj | ||
| 50 | 280 | 245 | 300 | 165 | 125 | 4mx 16 |
| 80 | 370/225 | 280 | 300 | 200 | 160 | 8 txm16 |
| 100 | 370/250 | 300 | 345 | 220 | 180 | 8 txm16 |
| 150 | 500 | 335 | 445 | 285 | 240 | 8 txm20 |
| 200 | 550 | 386 | 476 | 340 | 295 | 8 txm20 |
Q1. Peb qhov kev lees paub yog dab tsi?
A: 5 Xyoo warranty. Yog tias muaj teeb meem zoo ntawm peb cov ntsuas dej, peb yuav ua lub luag haujlwm tag nrho.
Q2. Vim li cas thiaj xaiv JIANGBEI ntsuas dej?
A: Peb ntsuas tus nqi ntws, demagnetize kuaj, tiv thaiv cov hlau nplaum ntsuas, poob siab, ntsuas siab tshaj plaws, ntsuas kev tiv thaiv, nruj me ntsis raws li ISO 4064 thiab EN 14154 tus qauv. Tsis tas li, peb muaj CNAS ntawv pov thawj ntsuas dej ntsuas kom paub tseeb tias peb cov ntsuas dej tuaj yeem ua tau raws li cov neeg siv khoom sib txawv.
Q3. Koj cov nqe lus ntawm kev ntim khoom yog dab tsi?
A: Feem ntau, peb ntim khoomdej ntsuasnyob rau hauvmuaj zog thawv,ntoo pallet lossis ntoo rooj plaub. Thiab peb kuj tuaj yeem tso koj lub npe lossis LOGO ntawm ntim tom qab tau txais koj cov ntawv tso cai.
Q4. Koj cov nqe lus ntawm kev them nyiaj yog dab tsi?
A: T/T 30% raws li tso nyiaj, thiab 70% ua ntej xa khoom lossis 70% tiv thaiv daim qauv ntawm daim ntawv nqa khoom. Peb' Kuv yuav qhia koj cov duab ntawmkoj cov dej ntsuasthiab pob khoom ua ntej koj them qhov nyiaj tshuav.
Q5. Koj cov nqe lus ntawm kev xa khoom yog dab tsi?
A: EXW, FOB, CFR, CIF, DDU.
Q6. Yuav ua li cas txog koj lub sijhawm khoom xa tuaj?
A: Feem ntau, nws yuav siv li 10-15 hnub tom qab tau txais koj daim tshev them ua ntej. Lub sijhawm xa khoom tshwj xeeb nyob ntawm cov khoom thiab qhov ntau ntawm koj xajntawm dej meters.
Q7. Koj puas tuaj yeem tsim khoom raws lintsuas dej ntsuas?
A: Yog, peb tuaj yeem tsim los ntawm koj cov qauv lossis cov duab kos. Peb tuaj yeem tsim cov pwm thiab cov khoom sib dhos.
Q8. Koj puas sim tag nrho koj lidej ntsuasua ntej yug?
A: Yog, peb muaj 100% xeem ua ntej xa khoom.
Q9.Koj ua peb li lag luam mus sij hawm ntev thiab kev sib raug zoo li cas?
A: 1. Peb khaws cov khoom lag luam zoo thiab tus nqi sib twntawm peb cov ntsuas dejkom ntseeg tau tias peb cov neeg siv khoom tau txais txiaj ntsig. 2. Peb hwm txhua tus qhua raws li peb tus phooj ywg thiab peb ua siab ncaj ua lag luam thiab ua phooj ywg nrog lawv, txawm lawv tuaj qhov twg los xij.
